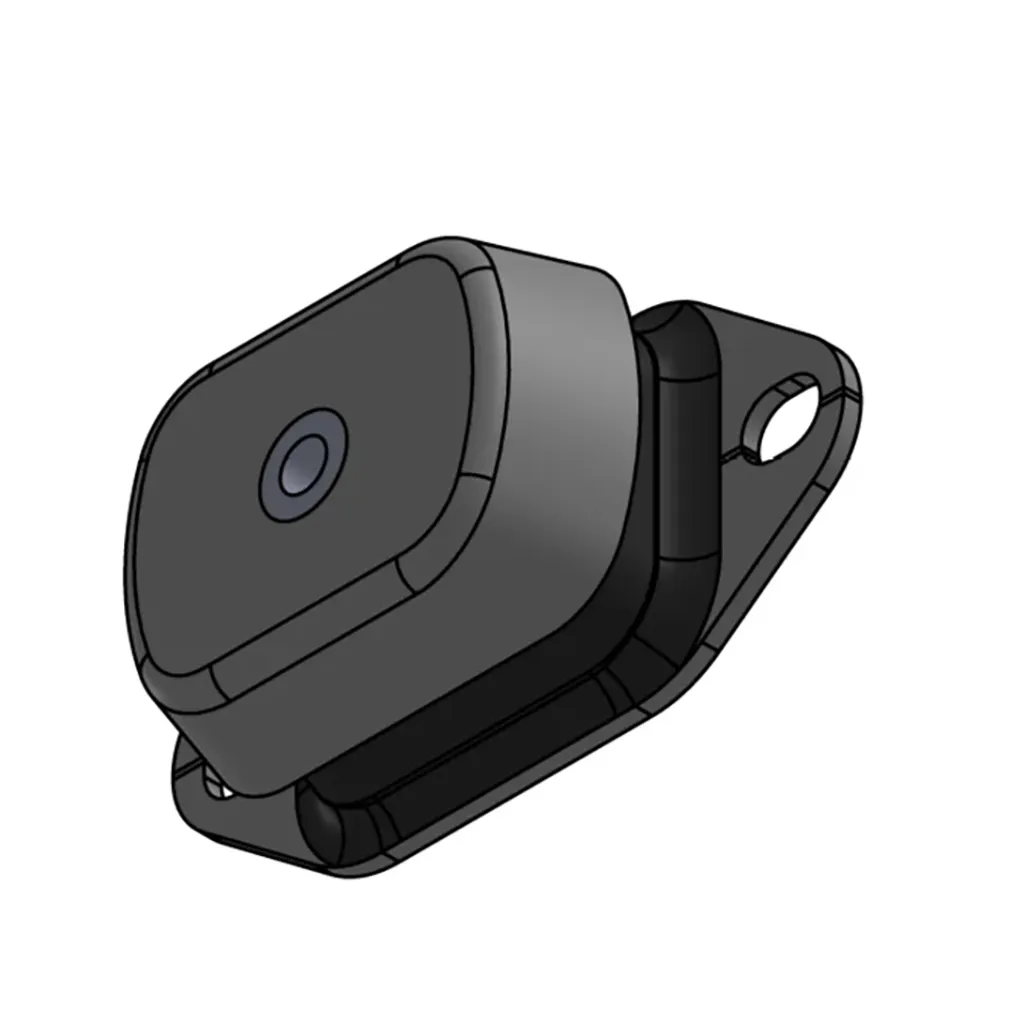

Marine Anti-Vibration Mounts
Marine Anti-Vibration Mounts
Fail-safe marine mounts developed for propulsion engines, engineered to accept propeller thrust as well as static weight. Directionally tuned stiffness gives optimum performance under the firing pulses of internal combustion engines. Loads from 50kg to 1,000kg per mount, hardness 30 to 60 Shore A.
Request a Quote
Get the best bulk price. We supply across UAE, GCC & Africa.
Marine Mounts and Propeller Thrust
A marine propulsion engine does something no static machine does: it pushes the whole vessel forward through its own mounting feet. That axial thrust, combined with vessel roll, pitch and the reversing loads of going astern, means an engine mount designed for a factory floor is simply the wrong component. Marine mounts are built to take that thrust while still isolating the engine’s firing vibration from the hull.
The BMR series achieves this through directionally tuned stiffness. The rubber element is shaped so that the mount is comparatively soft in the vertical axis, where isolation of engine vibration matters most, and considerably stiffer fore and aft, where thrust and shock have to be reacted into the bed plate. That asymmetry is what makes the mount suitable for internal combustion propulsion engines rather than just generator duty.
The construction is fail-safe. Steel components interlock so that the engine remains restrained on its bearers even in the event of rubber failure, which is a survey requirement on many commercial vessels and a sensible precaution on any craft that will see open water.
The same characteristics that suit a wheelhouse also suit harsh shore installations. BMR mounts are regularly specified for generator sets, diesel engines, pumps and compressors in coastal, offshore and agricultural environments where salt, humidity and corrosive atmospheres shorten the life of ordinary mountings. ABAW holds stock in Sharjah for UAE marine yards and exports to GCC and African ports.
Technical Specifications
Dimension Reference
| Property | Value |
|---|---|
| Material | Natural Rubber (NR) bonded to steel |
| Type | Fail-safe marine engine mount, thrust rated |
| Article Numbers | BMR 100, BMR 110, BMR 140, BMR 182 |
| Load Range | 50 kg to 1,000 kg per mount |
| Hardness | 30, 40, 50 and 60 Shore A |
| Total Height | 49mm (BMR 140), 70mm (BMR 182) |
| Flange Length | 178mm (BMR 140), 220mm (BMR 182) |
| Flange Width | 76mm (BMR 140), 112mm (BMR 182) |
| Thread Size | M16 (BMR 140), M20 (BMR 182) |
| Static Deflection | 4mm to 5mm |
| Metal Thickness | 6.5mm (BMR 140), 9mm (BMR 182) |
| Stiffness | Directionally tuned, softer vertically and stiffer fore and aft |
| Thrust Capability | Yes, mount accepts propeller thrust |
| Environment | Suited to marine, offshore, coastal and agricultural exposure |
| MOQ | As per requirement, bulk pricing available |
Typical values. Custom grades, sizes and compounds are available on request. Contact our Sharjah warehouse for bulk pricing.

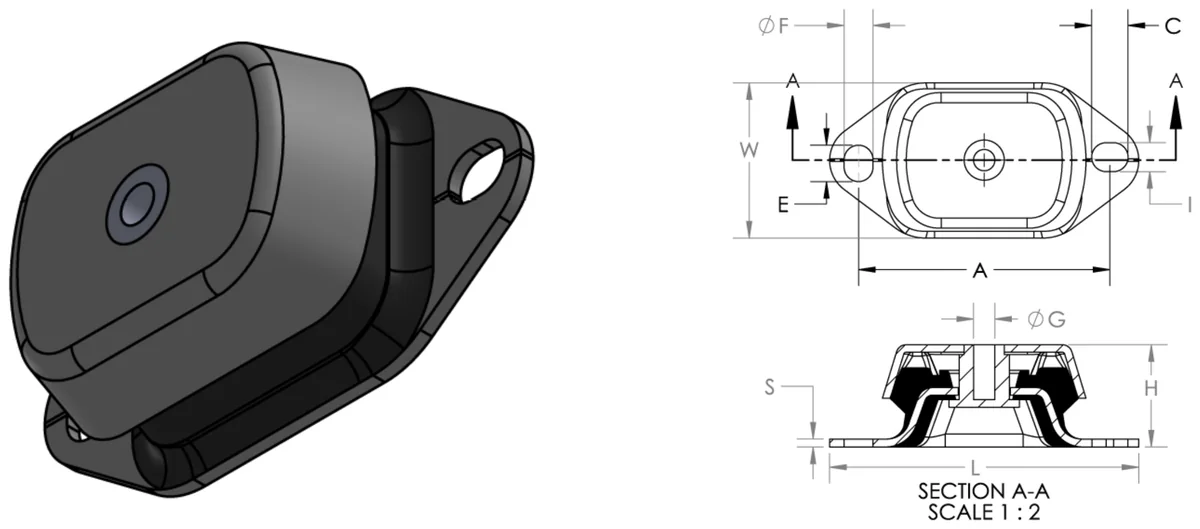

BMR Series Dimensions
| Article No. | H (mm) | L (mm) | Thread G | A (mm) | C (mm) | E (mm) | F (mm) | I (mm) | W (mm) | S (mm) | K (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BMR 140 | 49 | 178 | M16 | 140 | 20 | 30 | 13 | 13 | 76 | 6.5 | 25 |
| BMR 182 | 70 | 220 | M20 | 182 | 26 | 34 | 18 | 18 | 112 | 9 | 28 |
H = total height, L = flange length, G = thread size, A = hole distance, C and E = hole length, F and I = hole width, W = flange width, S = metal thickness, K = hole depth.
BMR Series Load and Deflection
| Article No. | Hardness (Shore A) | Load (kg) | Deflection (mm) |
|---|---|---|---|
| BMR 100 | 30 | 50 | 4.0 |
| BMR 110 | 40 | 70 | – |
| BMR 110 | 50 | 100 | – |
| BMR 140 | 30 | 135 | 5.0 |
| BMR 140 | 40 | 200 | 5.0 |
| BMR 140 | 50 | 300 | 5.0 |
| BMR 182 | 30 | 355 | 5.0 |
| BMR 182 | 40 | 530 | 5.0 |
| BMR 182 | 50 | 800 | 5.0 |
| BMR 182 | 60 | 1000 | 5.0 |
Loads are maximum static values per mount. For propulsion applications the mount must also be checked against propeller thrust and astern loading, so share the engine make, power rating, gearbox and shaft arrangement and we will confirm the selection.
Key Features & Benefits
- Accepts propeller thrust as well as static engine weight, unlike general purpose mounts
- Directionally tuned stiffness: soft vertically for isolation, stiff fore and aft for thrust
- Fail-safe interlocking steel construction keeps the engine restrained on its bearers
- Tuned specifically for the firing pulses of internal combustion engines
- Four hardness grades from 30 to 60 Shore A across a 50kg to 1,000kg load band
- Long flanged base spreads load into the engine bearer and eases alignment
- Suitable for corrosive marine, offshore, coastal and agricultural environments
- Also proven on shore-based generator sets, pumps and compressors
- Ready stock in Sharjah for UAE marine yards and workshops
- Custom compounds and stainless fittings available for severe exposure
Typical Applications
Marine propulsion engines
Marine gearboxes
Vessel generator sets
Diesel engines
Workboats & tugs
Yachts & leisure craft
Offshore platform equipment
Pumps & compressors
Coastal & harbour installations
Dredgers
Fishing vessels
Agricultural & remote plant
