Machine Mounts (Anti-Vibration Levelling Foot Mounts)

Levelling foot mounts that do two jobs at once: isolate vibration from heavy machinery and correct uneven flooring through an adjustable threaded stud. Nine sizes from 40mm to 200mm diameter, M10 to M24 threads, carrying 50kg to 2,000kg per mount. Ready stock in Sharjah.

Enquire on WhatsApp Enquire via Email

Request a Quote

Get the best bulk price. We supply across UAE, GCC & Africa.

Your Name

Email Address

Whatsapp / Phone

Company Name

Country

Message

Isolation and Levelling in One Component

Industrial floors are rarely flat. A lathe, press or CNC machine set down on an uneven slab will rock, load its feet unequally and, in the case of precision equipment, lose geometric accuracy. The conventional fix is packing shims under the short feet, which is slow, hard to adjust later and does nothing about vibration. A levelling machine mount solves both problems in one part.

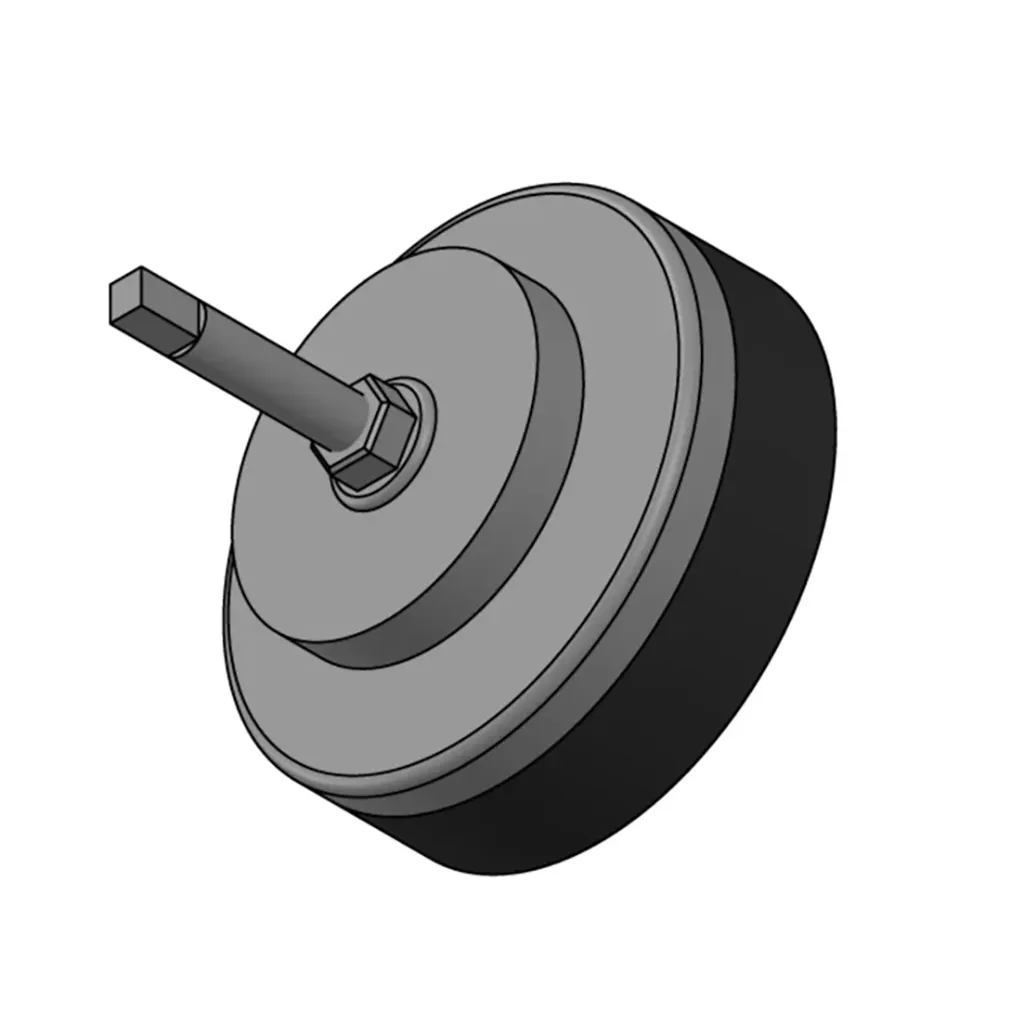

The construction is straightforward: a natural rubber pad bonded to a steel body, with a threaded stud that screws into the machine base or through the existing foot hole. Turning the stud raises or lowers that corner, so the machine can be levelled precisely with a spirit level and then locked off. Once set, the rubber element continues to isolate vibration and damp the shock loading from presses, punches and interrupted cuts.

The BFM series covers nine sizes from BFM 100 at 50 to 100kg through to BFM 2000 rated for 1,600 to 2,000kg per mount, meaning four mounts will support machinery approaching eight tonnes. Levelling adjustment runs from 50mm to 80mm depending on size, which is far more than shimming realistically allows. BFM 100 is the exception, supplied as a fixed-height mount without adjustment.

Because the mount is not bolted to the floor, the machine can be repositioned during a plant reconfiguration without breaking out anchor bolts. That flexibility, combined with the hygienic wipe-clean profile, is why the range is widely used in food processing and pharmaceutical facilities across the UAE as well as in general engineering workshops.

Technical Specifications

Dimension Reference

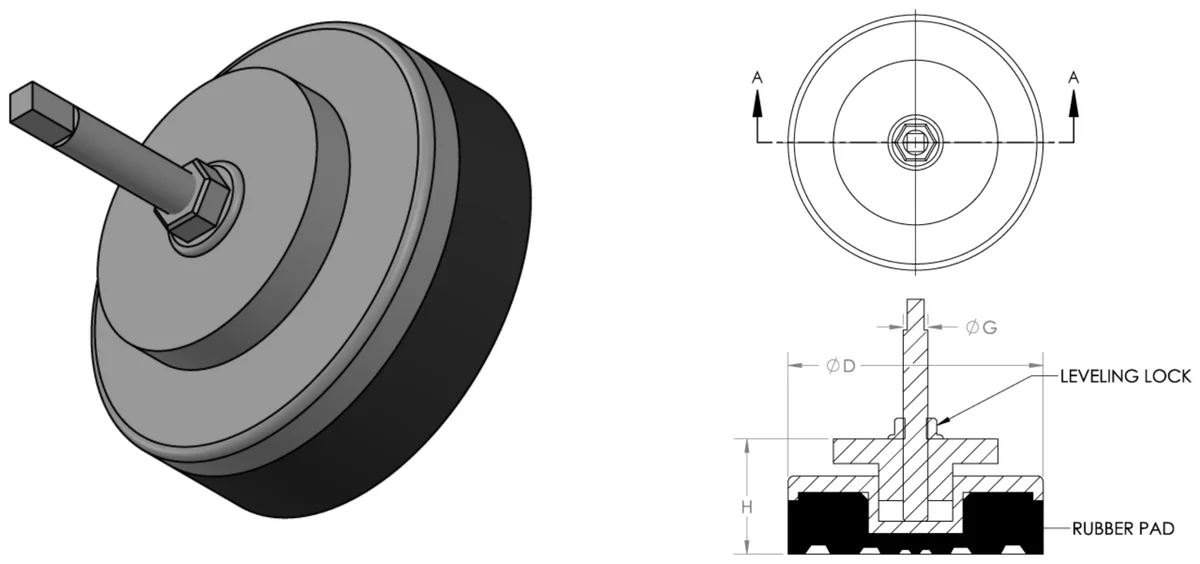

Anti-vibration machine levelling foot mount technical drawing showing the threaded adjusting stud, levelling lock nut, ribbed rubber pad, plan view and Section A-A with H height, D diameter and G thread size — H = Height · D = Diameter · G = Thread Size

Property	Value
Material	Natural Rubber (NR) bonded to steel, with threaded stud
Type	Anti-vibration levelling foot mount
Article Numbers	BFM 100 through BFM 2000, nine sizes
Diameter Range	40mm to 200mm
Height Range	22mm to 68mm
Levelling Adjustment	50mm to 80mm (BFM 100 is fixed height, no adjustment)
Thread Sizes	M10, M12, M16, M20, M24
Load Capacity	50 kg to 2,000 kg per mount
Functions	Vibration isolation and floor levelling in a single component
Fixing	No floor anchoring required
Colour	Black
Customisation	Custom threads, heights and compounds available on request
MOQ	As per requirement, bulk pricing available

Typical values. Custom grades, sizes and compounds are available on request. Contact our Sharjah warehouse for bulk pricing.

BFM Series Sizes and Load Capacity

Article No.	H height (mm)	D diameter (mm)	Adjustable Level (mm)	Thread G	Load Capacity (kg)
BFM 100	22	40	Nil	M10	50 to 100
BFM 200	42	50	50	M10	100 to 200
BFM 400	42	85	50	M10 / M12	200 to 400
BFM 600	50	105	60	M12 / M16	400 to 600
BFM 800	50	125	60	M12 / M16	600 to 800
BFM 1000	56	145	68	M16 / M20	700 to 1100
BFM 1200	56	165	68	M16 / M20	900 to 1400
BFM 1600	68	185	80	M16 / M20	1200 to 1800
BFM 2000	68	200	80	M16 / M20 / M24	1600 to 2000

H = height, D = diameter, G = thread size. BFM 100 is supplied as a fixed height mount with no levelling adjustment. Load capacity is per mount, so multiply by the number of feet to find the machine weight the set will carry.

Key Features & Benefits

Isolates vibration and levels the machine in a single component, replacing shims
Threaded stud gives 50mm to 80mm of adjustment for genuinely uneven floors
Nine sizes spanning 50kg to 2,000kg per mount cover benchtop through to heavy plant
No floor anchoring, so machinery can be repositioned during plant reconfiguration
Damps shock loading from presses, punches and interrupted machining cuts
Thread options from M10 to M24 fit both metric equipment and adapted bases
Wipe-clean profile suits food processing and pharmaceutical environments
Reduces structure-borne noise transmission into adjoining areas and floors above
Improves machining accuracy by removing rock and unequal foot loading
Ready stock in Sharjah with same-week dispatch across the UAE

Typical Applications

Machine tools & CNC centres

Lathes

Presses & punches

Heavy industrial equipment

Conveyors

Food processing equipment

Pharmaceutical equipment

Generator sets

Packaging lines

Grinding & milling machines

Injection moulding machines

Textile machinery

ABAW is a machine mount and anti-vibration levelling foot mount supplier in Sharjah and Dubai, UAE, stocking the BFM series in nine sizes from 40mm to 200mm diameter with M10 to M24 threads and load capacities from 50kg to 2,000kg per mount. Levelling machine mounts are specified across UAE engineering workshops, machine shops, food processing plants, pharmaceutical facilities and packaging lines. We supply in bulk to Dubai, Abu Dhabi, Sharjah, Ajman and the northern emirates, and export to Saudi Arabia, Kuwait, Qatar, Oman, Bahrain, Egypt, Nigeria, Kenya, South Africa, Ghana, Tanzania and Ethiopia.

Frequently Asked Questions

What is the difference between a machine mount and an anti-vibration pad?

A pad sits loose under the machine foot and only isolates vibration. A levelling machine mount does that too, but adds a threaded stud that screws into the machine base so you can raise or lower each corner and level the machine precisely. Use a pad when the floor is flat and you only need isolation. Use a machine mount when the floor is uneven, when the machine must be set level for accuracy, or when you want to be able to re-level it later without lifting it.

How much levelling adjustment do these mounts give?

Between 50mm and 80mm depending on the size, which is considerably more than shim packing realistically allows and enough for most industrial slabs. The exception is BFM 100, the smallest size, which is supplied as a fixed height mount without adjustment. Check the adjustment column in the size chart against the height variation you have measured across the machine footprint.

Do machine mounts need to be bolted to the floor?

No. The mount sits on the floor under its own load and the machine weight holds it in place, which is a practical advantage when a plant layout changes because equipment can be moved without breaking out anchor bolts and making good the slab. For machines that generate large horizontal forces, such as heavy presses or equipment with a rapidly traversing bed, discuss the application with us first, as some installations still warrant anchoring.

Which size do I need for my machine?

Divide the machine weight by the number of feet, then select a size whose load capacity band comfortably contains that figure. Remember that weight is rarely distributed evenly: a lathe carries more at the headstock end, and a machine with a heavy spindle motor or coolant tank will load one corner more than the others. Size to the heaviest foot rather than the average. Send us the machine make, model and weight and we will recommend the article number.

Are these mounts suitable for food and pharmaceutical facilities?

The profile wipes down easily and there is no floor anchor to trap water or product residue, which is why the range is widely used on food processing and pharmaceutical lines. Where the mount will be subject to regular caustic washdown, high-pressure cleaning or direct contact with fats and oils, ask us about alternative compounds and stainless steel components, as standard natural rubber and plated steel are not the best choice for those conditions.
