Electrical Insulating Rubber Mats (IEC 61111:2009)
Electrical Insulating Rubber Mats (IEC 61111:2009)
SafeZone IEC 61111:2009 certified electrical insulating mats — Class 0 to Class 4, up to 50kV withstand voltage. Available in 3mm, 4mm, 5mm, 6mm & 9mm thickness, 1m × 10m size. Anti-skid fine ribbed surface. In-stock in Dubai.
Request a Quote
Get the best bulk price. We supply across UAE, GCC & Africa.
Electrical insulating rubber mats to IEC 61111:2009 are safety-critical products designed to protect personnel working near high-voltage electrical equipment from electric shock by providing a reliable insulating barrier between the operator and the ground. ABAW supplies SafeZone brand IEC 61111:2009 certified insulating mats from our Dubai warehouse for immediate bulk dispatch to the UAE, GCC, and Africa.
Available in five classes — Class 0 through Class 4 — these mats cover maximum use voltages from 1,000V up to 36,000V (36kV), with proof-test withstand voltages up to 50kV. Each class is colour-coded for easy visual identification on-site, with a fine-ribbed anti-skid top surface and textured bottom for secure placement on any floor.
These mats are manufactured from premium-grade elastomers engineered for superior electrical resistance, mechanical strength, and long-term durability in heavy industrial environments including power plants, electrical substations, switchboard rooms, transformer yards, data centres, battery rooms, and railway electrification systems.
Available in five classes — Class 0 through Class 4 — these mats cover maximum use voltages from 1,000V up to 36,000V (36kV), with proof-test withstand voltages up to 50kV. Each class is colour-coded for easy visual identification on-site, with a fine-ribbed anti-skid top surface and textured bottom for secure placement on any floor.
These mats are manufactured from premium-grade elastomers engineered for superior electrical resistance, mechanical strength, and long-term durability in heavy industrial environments including power plants, electrical substations, switchboard rooms, transformer yards, data centres, battery rooms, and railway electrification systems.
⚡ IEC 61111:2009 Voltage Class Guide
| Property | Value |
|---|---|
| Brand | SafeZone |
| Standard | IEC 61111:2009 |
| Classes Available | Class 0, Class 1, Class 2, Class 3, Class 4 |
| Thickness | 3mm, 4mm, 5mm, 6mm, 9mm |
| Size | 1,000mm (W) × 10,000mm / 10m (L) |
| Class 0 – Max Use Voltage | 1.0 kV AC | Proof: 5.0 kV | Withstand: 10.0 kV |

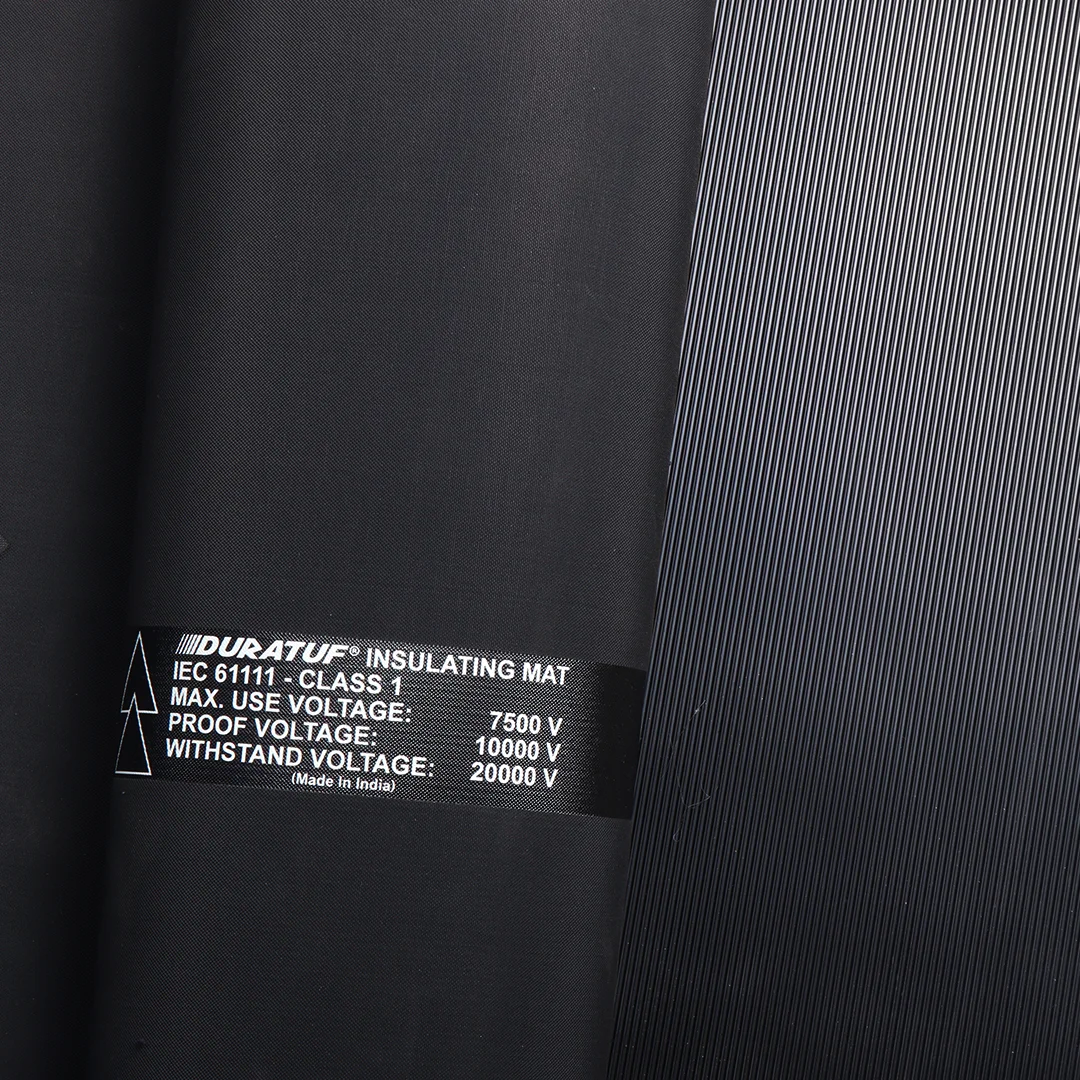

| Class 1 – Max Use Voltage | 7.5 kV AC | Proof: 10.0 kV | Withstand: 20.0 kV |
| Class 2 – Max Use Voltage | 17.0 kV AC | Proof: 20.0 kV | Withstand: 30.0 kV |
| Class 3 – Max Use Voltage | 26.5 kV AC | Proof: 30.0 kV | Withstand: 40.0 kV |

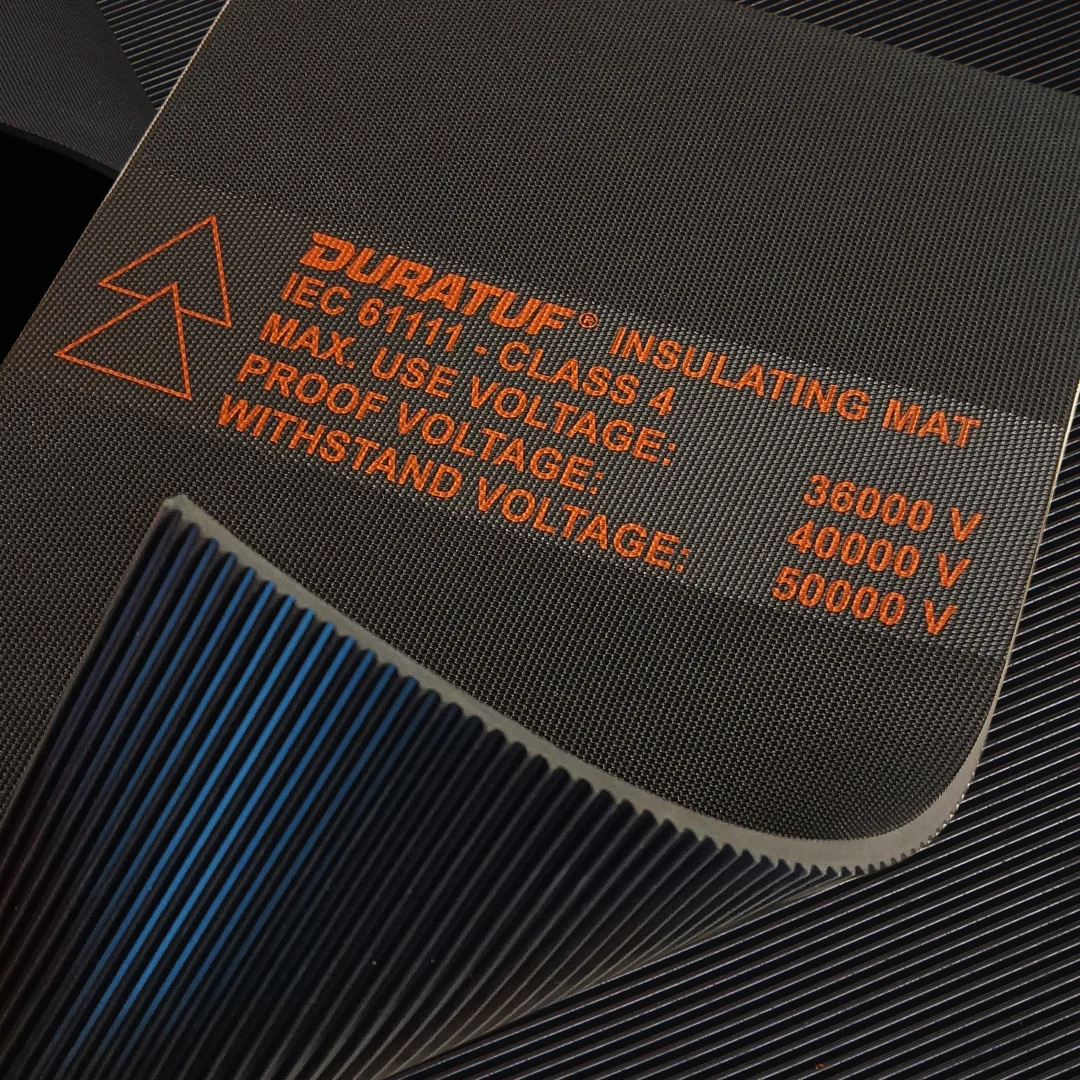

| Class 4 – Max Use Voltage | 36.0 kV AC | Proof: 40.0 kV | Withstand: 50.0 kV |

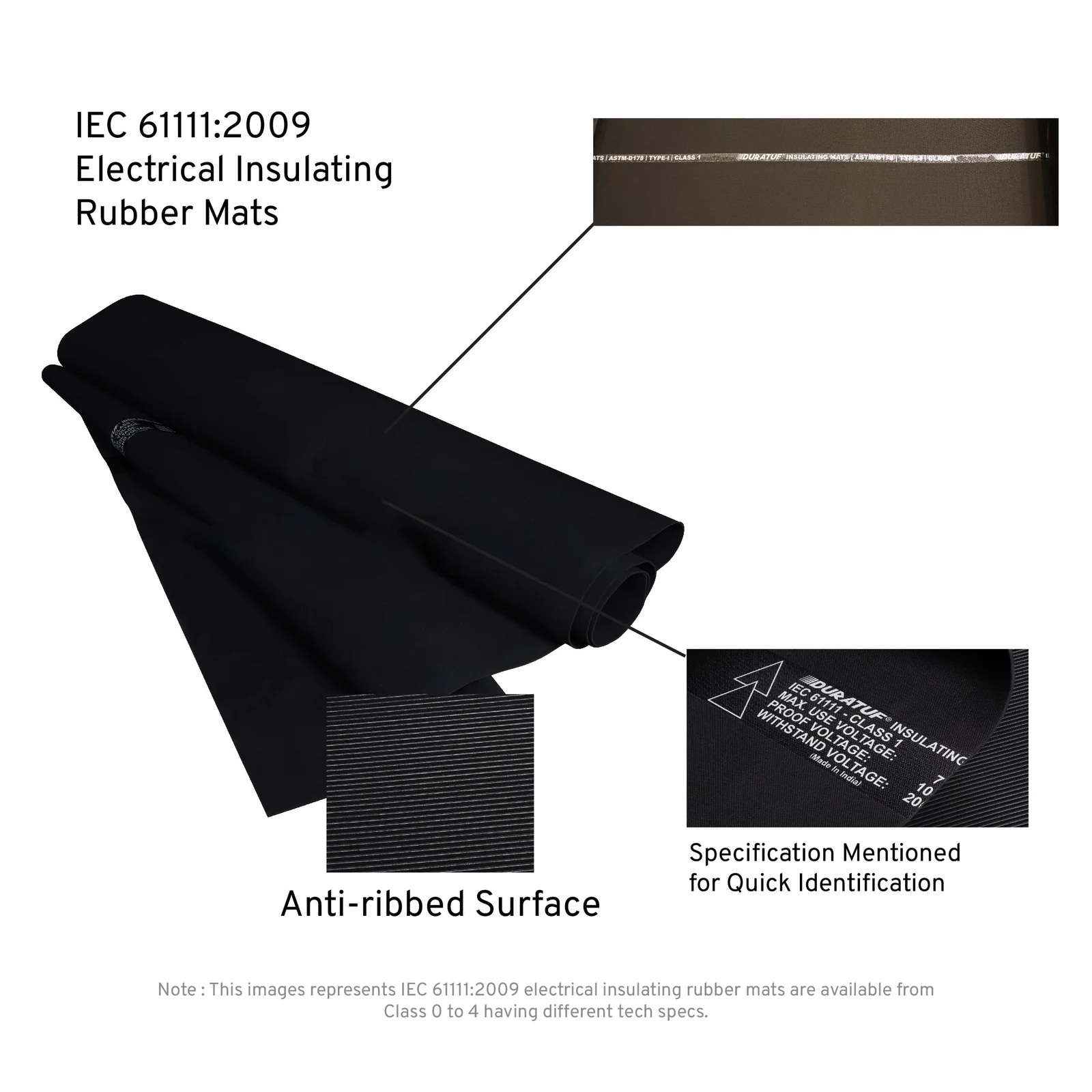

| Surface | Anti-skid fine ribbed (top) / Textured (bottom) |
| Colour | Black, Red, Green (class-coded) |
| Hardness | 65 ±5 Shore A |
| Elongation | 200% – 300% |
| Specific Gravity | 1.5 – 1.8 g/cm³ |
| Packing | Inner film wrapped, PP/woven bags, pallets |
| MOQ | As per requirement |
Technical Specifications
| Property | Value |
|---|---|
| Standard | IEC 61111:2009 |
| Classes Available | Class 0, Class 1, Class 2, Class 3, Class 4 |
| Class 0 – Max Use Voltage | 1,000V AC / 1,500V DC |
| Class 1 – Max Use Voltage | 7,500V AC / 11,250V DC |
| Class 2 – Max Use Voltage | 17,000V AC / 25,500V DC |
| Class 3 – Max Use Voltage | 26,500V AC / 39,750V DC |
| Class 4 – Max Use Voltage | 36,000V AC / 54,000V DC |
| Proof-Test Withstand Voltage | Up to 50kV |
| Thickness | 3mm – 15mm (class-dependent) |
| Width | 1,000mm – 1,500mm |
| Length | 5m – 30m rolls |
| Hardness | 65 ±5 Shore A |
| Elongation | 200% – 300% |
| Specific Gravity | 1.5 – 1.8 g/cm³ |
| Surface | Fine-ribbed (top) / Textured (bottom) |
| Colour | Black, Red, Green (class-coded) |
| Packing | Inner film wrapped, PP/woven bags, pallets |
| MOQ | As per requirement |
* Typical values. Custom grades and sizes available — contact our Dubai warehouse for bulk pricing.
Key Features & Benefits
- Certified to IEC 61111:2009 — internationally recognised electrical safety standard
- Five classes (0–4) covering 1kV to 36kV maximum use voltage
- Anti-skid fine ribbed top surface for secure footing — prevents slipping in switchrooms and substations
- Textured bottom prevents mat movement on smooth floor surfaces
- Premium elastomer compound for superior long-term electrical resistance
- Colour-coded by class for instant visual identification
- Resistant to oil, moisture, and mild chemicals for industrial durability
- Standard size: 1m wide × 10m long — ideal for full switchroom and substation coverage
- Bulk wholesale pricing from Dubai warehouse for GCC and African markets
Typical Applications
Electrical substations
Power generation plants

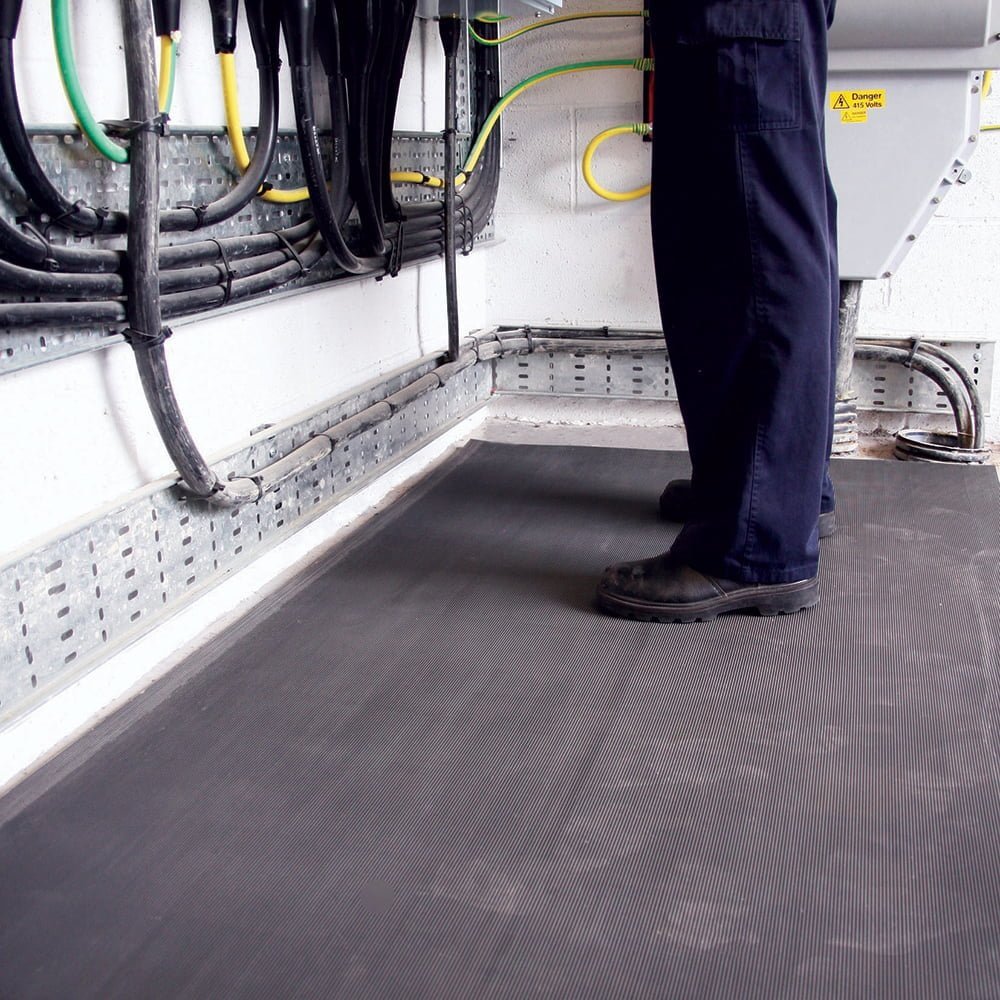

Switchboard & control rooms
Transformer yards
Data centres & UPS rooms
Battery rooms
Railway electrification
Oil & gas electrical installations
Industrial control panels
High-voltage testing labs
Utility & MEP workshops
Telecommunications facilities
ABAW is a trusted electrical insulating rubber mat supplier in Dubai, UAE, stocking IEC 61111:2009 certified mats in Class 0 to Class 4 for immediate bulk supply and export. Electrical insulating mats are mandatory safety equipment in UAE and GCC electrical substations, switchrooms, and power facilities. We supply IEC 61111:2009 insulating mats wholesale to Saudi Arabia, Kuwait, Qatar, Oman, Bahrain, Egypt, Nigeria, Kenya, South Africa, Ghana, Tanzania, and Ethiopia.
